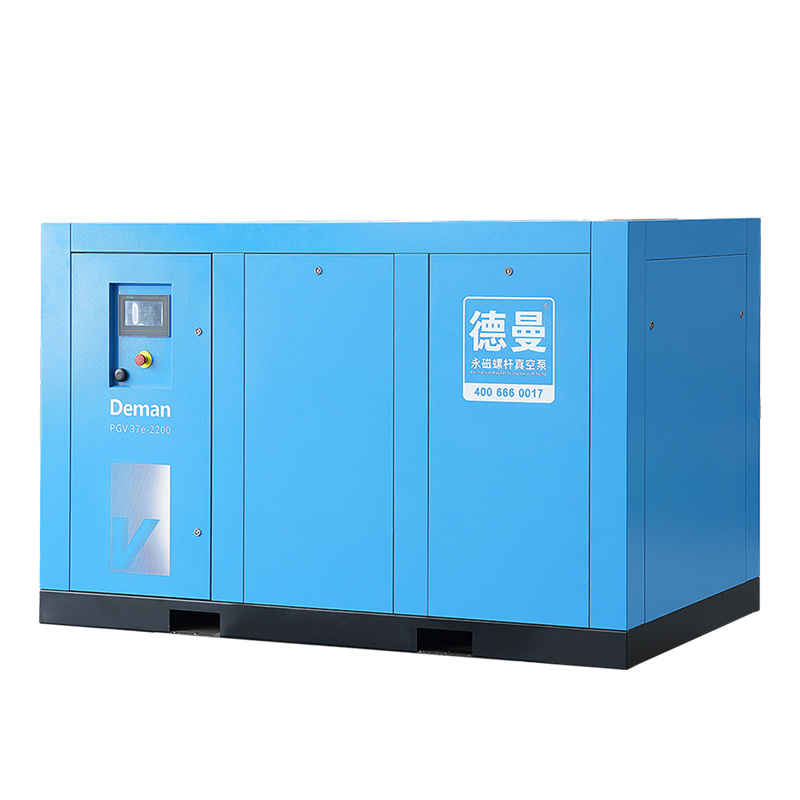

PGVe Series PM VSD Screw Vacuum Pump

Product Highlight

Product Structure

•

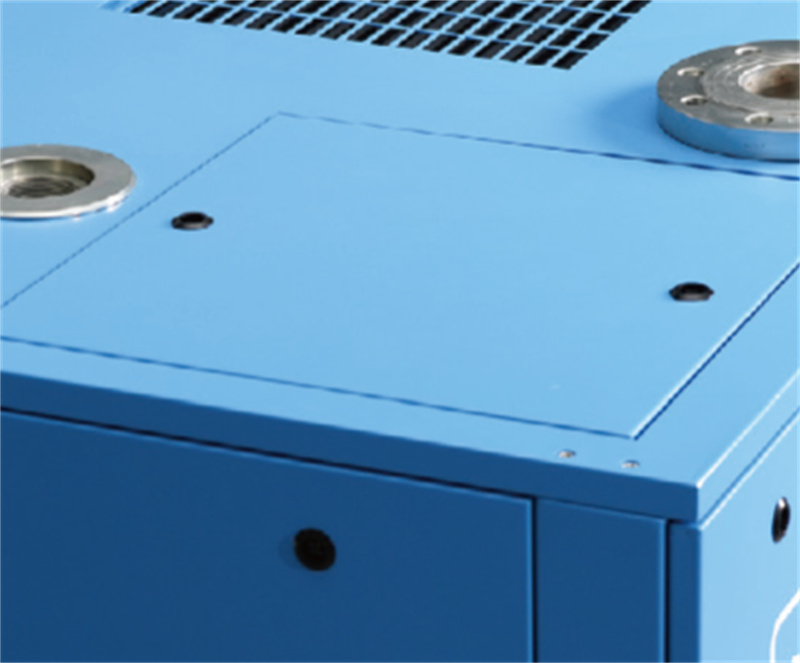

• Smart-Positioned Consumables：

  ·The oil separator features a dedicated maintenance panel on its top cover.

  ·Allowing a quick and easy replacement of the oil separation element, minimizing downtime and service costs.

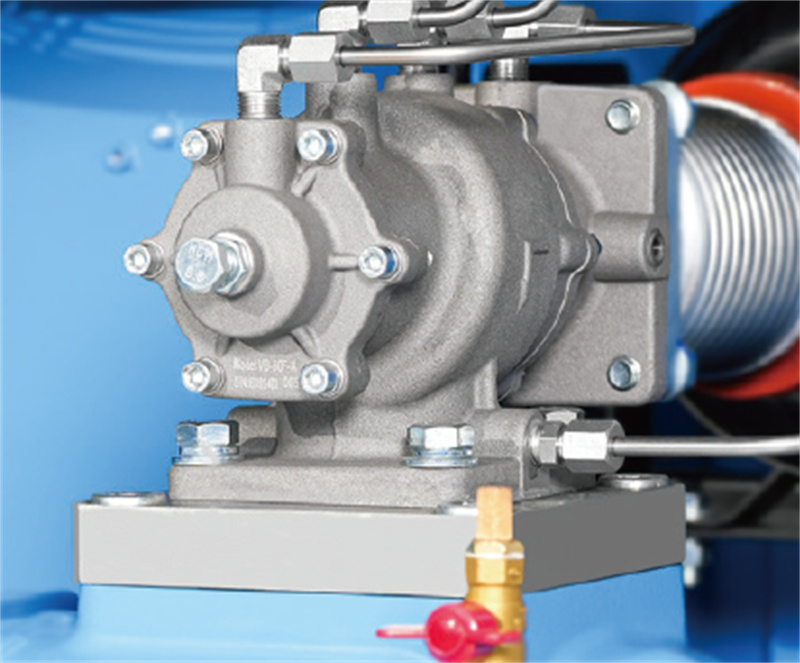

• VSD-Specific Vacuum Intake Valve：

  ·Coordinating with the PM VSD drive, to manage airflow during startup to ensuring rapid attainment of the target vacuum level

  ·Preventing air backflow during shutdown, thereby protecting the vacuum pipeline system
•

•

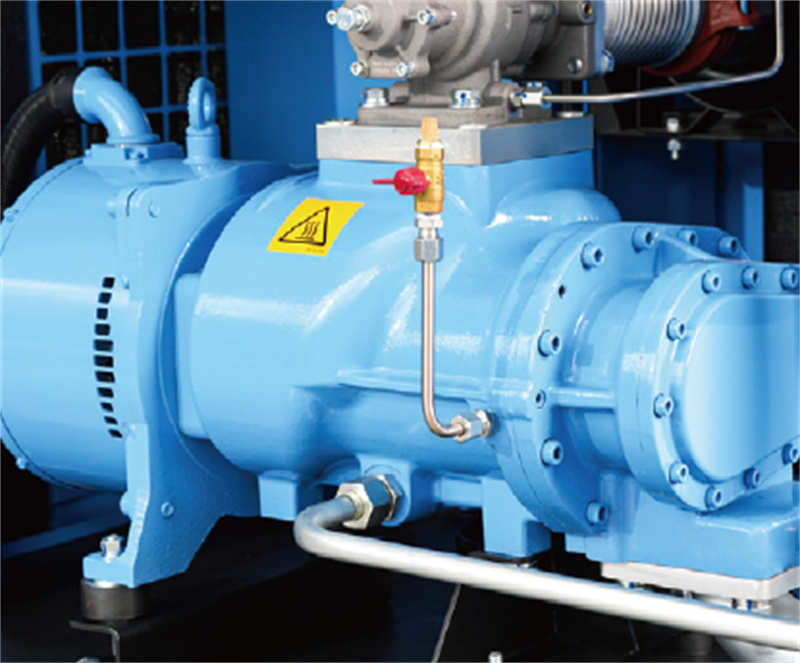

• Vacuum Pump-Specific Screw Rotor Air-end：

  ·A dedicated design for rough vacuum applications and delivers exceptional performance

  ·Featuring a rotor with large diameter and lower rotational speed for more stable operation

  ·Its optimized profile and structure achieve a 12% improvement in sealing, a 15% reduction in internal leakage, and a 30% increase in overall efficiency

  ·Precision machining technology ensures high sealing and low leakage in the compression chamber

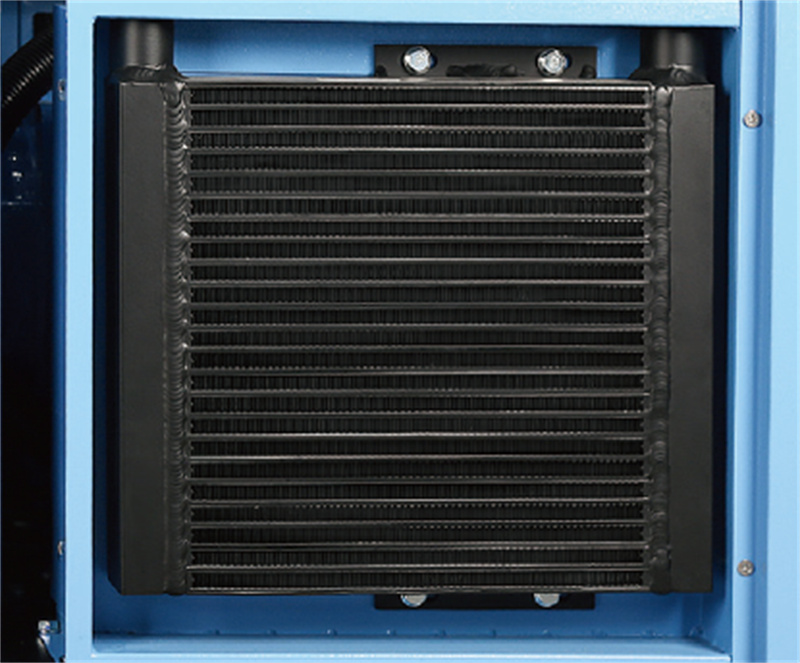

• High-Performance Cooling System：

  ·A high-airflow, low-noise axial fan with a customized motor are regulated by the central control system to meet operation requirements.

  ·The advanced plate-fin heat exchanger provides an extra-large dissipation area with separate circuits for oil and air.

  ·This superior design ensures stable operation and protects components even in high-temperature ambient conditions.

  ·Ensures stable equipment operation even in high-temperature environments
•

•

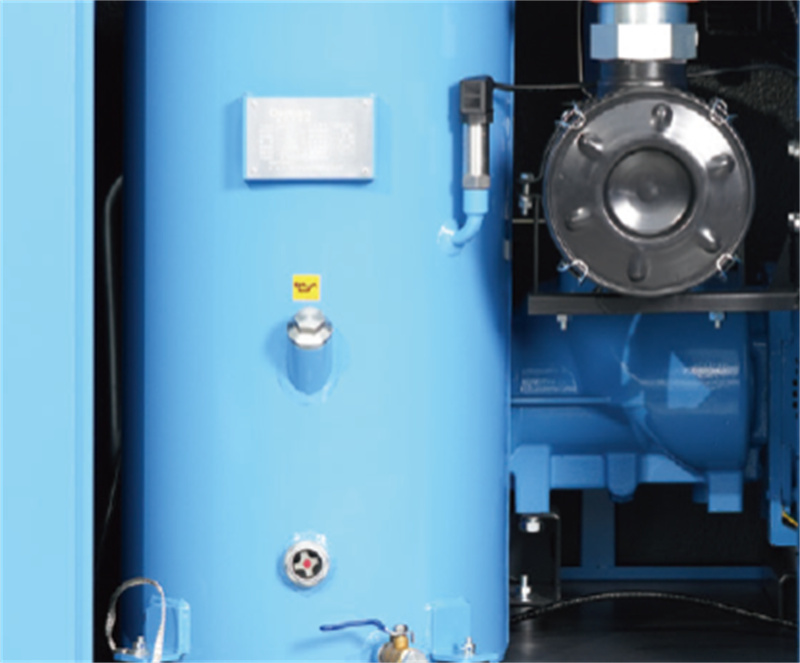

• Three-Stage Vacuum Separation System：

  ·Stage 1: Cyclonic Separation - Utilizes centrifugal force for preliminary oil-air separation

  ·Stage 2: Impaction Separation - The airflow’s contact with the wall surface to further separate oil droplets

  ·Stage 3: High-Efficiency Oil-Air Separator - Employs original, imported multi-layer micro-glass fiber media to remove finest oil aerosols, ensuring exceptionally clean exhaust air.

Technical Parameter
