What Are the Connection Methods for Aluminum Alloy Pipes?

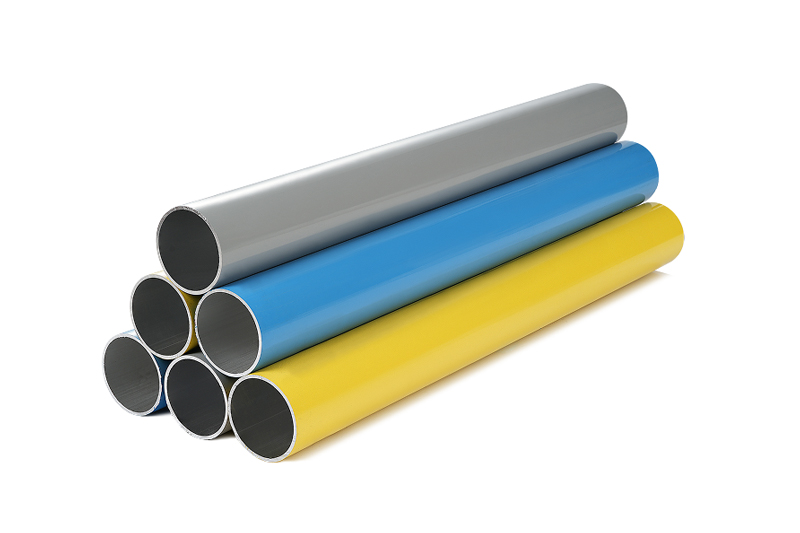

In compressed air systems, the selection of pipe connection methods directly affects the system’s airtightness, stability, and long-term operational reliability. Thanks to their advantages such as light weight, corrosion resistance and easy installation, aluminum alloy pipes are being adopted by an increasing number of manufacturing enterprises.
What are the common connection methods for aluminum alloy pipes, and what scenarios is each method suitable for? This article will sort them out for you one by one.
- Flange Connection
Principle: Flanges are installed at the ends of aluminum alloy pipes. Two flanges are tightly connected by bolts to realize pipe connection.
Features:
- High connection strength and reliable sealing performance
- Easy disassembly and maintenance
- Suitable for large-diameter pipes or parts requiring frequent assembly and disassembly
Applicable Scenarios: Main air pipelines, equipment interfaces, pipe sections requiring regular maintenance.
- Welded Connection
Principle: Two sections of aluminum alloy pipes are directly connected by welding processes including TIG (Tungsten Inert Gas Welding) and MIG (Metal Inert Gas Welding).
Features:
- Firm connection with no leakage points
- Neat appearance and small space occupation
- High requirements for welding technology; operation must be performed by professional technicians
Applicable Scenarios: Permanent fixed pipelines, occasions with extremely high sealing requirements.
- Press Fitting Connection
Principle: Special pressing tools are used. The aluminum alloy pipe is inserted into the pipe fitting port, and the fitting is compressed by the pressing tool to cause plastic deformation at the sealing part of the fitting, thus achieving sealed pipe connection.
Features:
- Fast installation and hot work free
- Stable sealing performance
- High requirements for pipe roundness
Applicable Scenarios: Indoor pipe installation, projects with tight construction periods, places where open flame operations are prohibited.
- Compression Connection
Principle: The pipe is inserted into the fitting port and fastened by nuts. The spiral force compresses the sleeve at the pipe port through the sealing ring to achieve sealing.
Features:
- Simple structure and convenient installation
- Removable and easy for maintenance and replacement
- Service life is directly determined by the material of the sealing ring
Applicable Scenarios: Medium and small diameter pipes, pipe sections requiring regular maintenance.
- Taper Thread Connection
Principle: External or internal threads are processed at the ends of aluminum alloy pipes. Pipes are connected with fittings or valves through thread matching.
Features:
- Fast connection without special tools
- High requirements for thread precision; leakage may occur if precision is insufficient
- Suitable for small-diameter pipes
Applicable Scenarios: Valves, instrument interfaces, terminal air supply connections.
- Selection Recommendations
In practical applications, appropriate connection methods shall be selected according to specific working conditions. It is recommended to comprehensively consider the following factors:
- Pipe diameter: Flange or welding is preferred for large-diameter pipes.
- Installation environment: Press fitting or compression connection shall be adopted for fire-prohibited areas.
- Maintenance requirements: Flange or compression connection for parts requiring frequent assembly and disassembly.
- Sealing requirements: Welding or flange connection for occasions with zero leakage tolerance.
Meanwhile, close attention must be paid to the sealing performance and stability of connections. If you have specific requirements for aluminum alloy pipe connection methods, please refer to relevant standards and specifications or consult professional pipeline engineers.
