How Should the Manufacturing Industry Choose Air Compressors?
In manufacturing production, the air compressor is known as the “powerful heart”, providing a continuous supply of compressed air to various pneumatic equipment and production lines. However, when faced with the wide variety of air compressor products on the market, many enterprises often feel confused when choosing: What kind of air compressor is the most suitable for their factories?
This article will present the key points for selecting air compressors from two major aspects: air demand analysis and comparison of common models.
Get to the Bottom of Things: Clearly Define the Air Demand of the Factory
The first step in the selection process is not to consider the price, but to first understand the air usage situation of your own factory. Each factory has different working conditions, and making a hasty choice can easily lead to problems such as “a pony pulling a big cart” or “big horse pulls a small carriage”.
First: Air Consumption Assessment
Workshop scale: It is necessary to calculate the simultaneous usage coefficient of all air-using equipment, and determine the maximum and average air consumption.
Air usage fluctuation: Is there any obvious peak-valley fluctuation in production? In cases with large fluctuations, the regulating ability of the air compressor is more severely tested.
Second: Pressure Requirements
The requirements for air pressure vary among different devices: some need high pressure to function properly, while others can operate with low pressure.
It is necessary to clearly define the maximum air pressure requirement of the factory and leave an appropriate margin (usually increasing by 0.5-1 bar) based on this.
Third: Air Quality Requirement
Do you have any specific requirements regarding the oil and water content in the compressed air? For instance, in industries such as electronics, food, and medicine, it is often necessary to have oil-free or highly purified compressed air.
Only after understanding these things can you select the truly suitable machine.
Model Comparison: How to Choose Among the Three Common Types of Air Compressors?
At present, the common types of air compressors on the market include three varieties, each with its own advantages and disadvantages, and they are applicable in completely different scenarios.

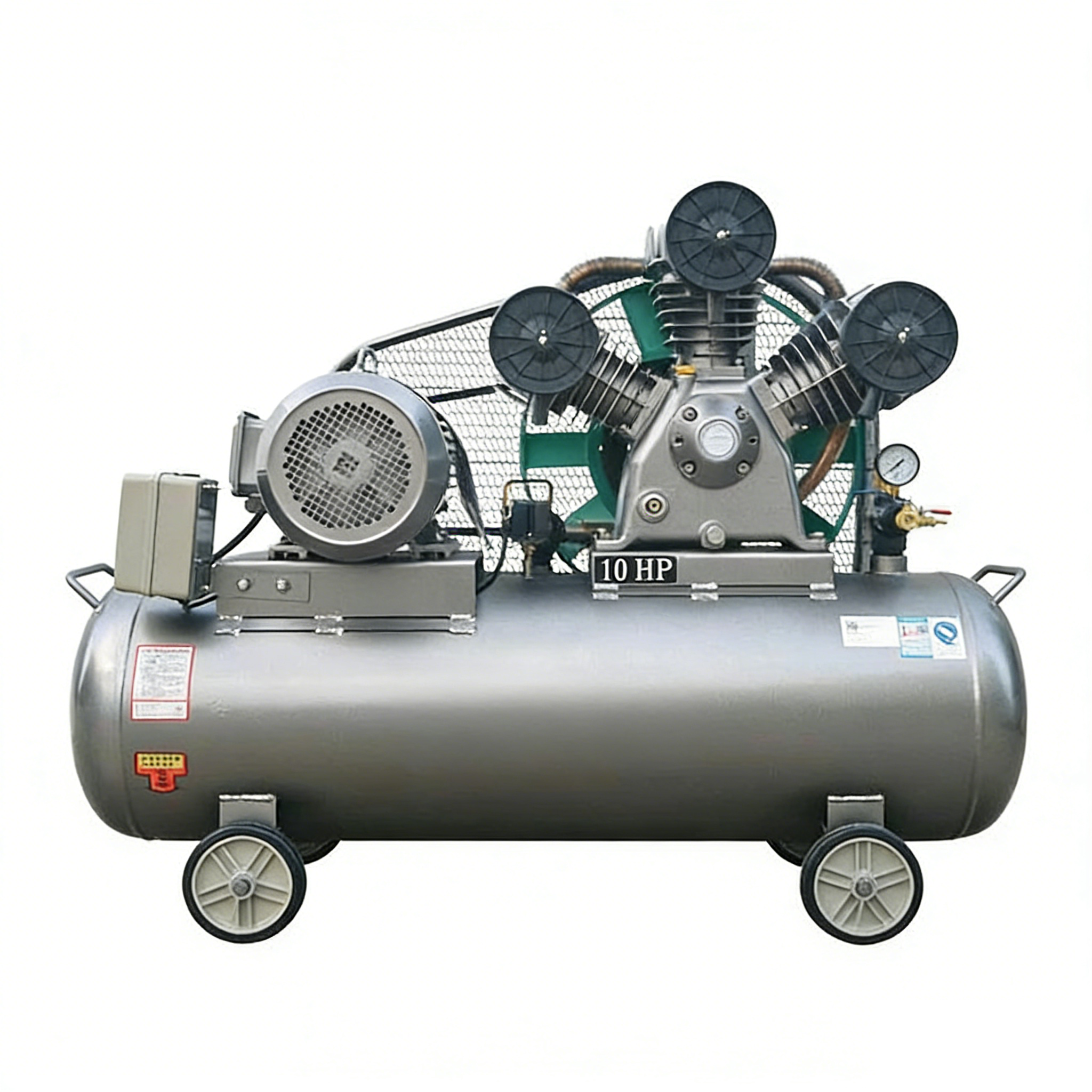

- Piston Compressor
Features:
- Low cost, with low initial investment
- Simple structure, mature technology
Disadvantages:
- High noise level, with a distinct piston impact sound during operation, similar to that of a tractor
- High failure rate, prone to problems such as piston ring wear and valve plate damage
- Frequent maintenance is required, which is costly and time-consuming, and the machine needs to be shut down for a long time

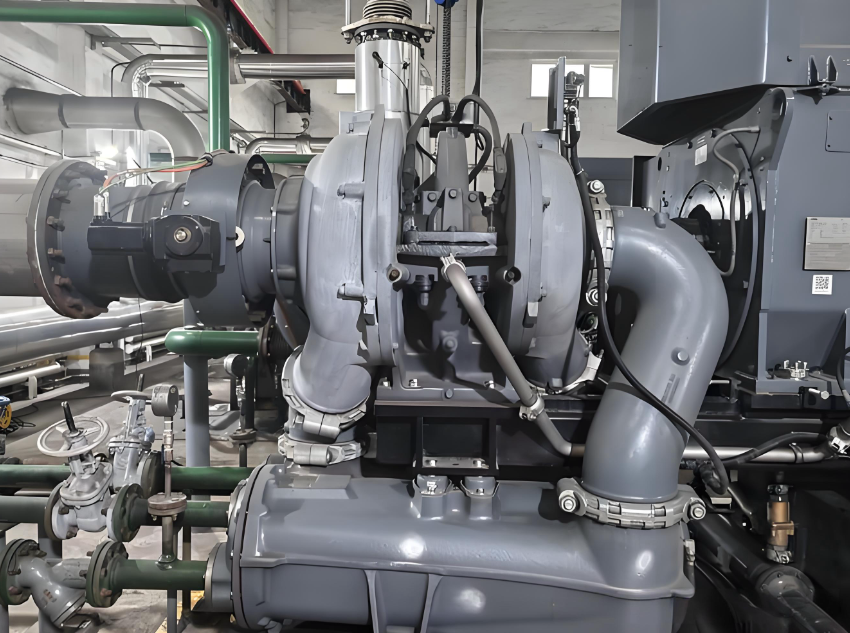

- Centrifugal Compressor
Features:
- High power output, ample air volume, suitable for large-scale continuous air supply
- Oil-free operation, high air quality
- High efficiency, suitable for 24-hour uninterrupted operation
Disadvantages:
- Expensive, with high initial investment
- Requires strict operating conditions, and efficiency significantly decreases when deviating from the design point
- May experience surge in low-flow conditions
- Difficult to maintain, requiring professional technicians

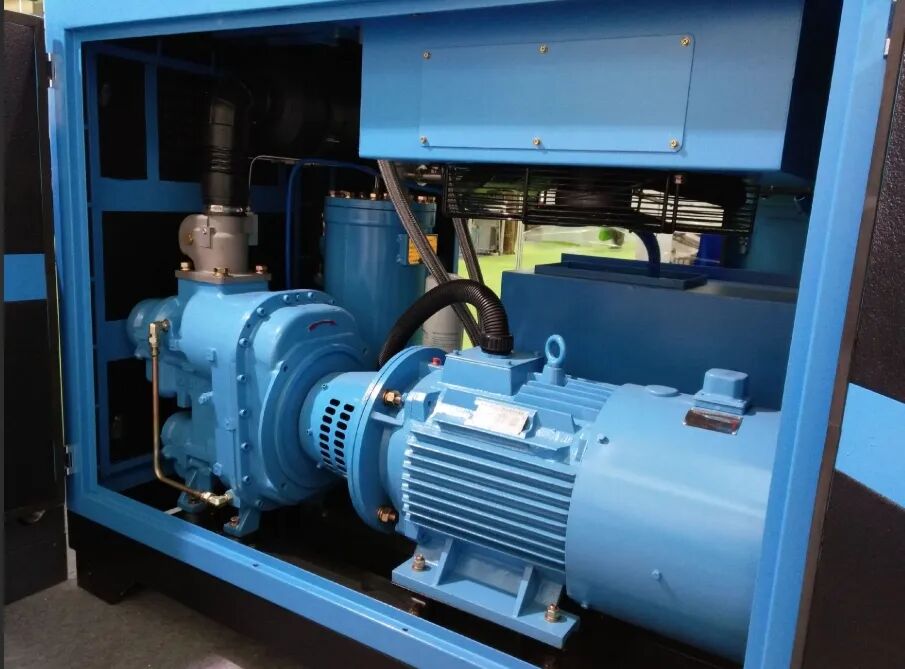

- Screw Compressor
Features:
- Smooth operation: Based on the double screw meshing principle, it operates quietly without disturbing others
- Excellent air quality: Low air flow pulsation and stable air pressure
- Easy maintenance: Simple structure, few wear parts, and less likely to break
- High energy efficiency: Permanent magnet variable frequency technology can achieve 30%-50% energy-saving effect
Disadvantages:
- The initial investment is higher than that of piston machines, but much lower than that of centrifuges.
Selection Suggestions: How to Make the Optimal Decision?
Overall, for the majority of manufacturing enterprises, the screw air compressor has achieved the best balance among performance, stability, energy efficiency, and maintenance costs.
When conducting the actual selection process, it is recommended to follow the following steps:
- Accurate Calculation: Entrust professional teams or suppliers to conduct on-site investigations to accurately measure airconsumption, pressure, and fluctuation curves.
- Energy Efficiency First: Focus on the specific power ratio indicators of the air compressor and select products with first-level energy efficiency.
- Reserve Margin: Consider future capacity expansion and appropriately reserve 10%-20% of airvolume as a buffer.
- Attention to Services: Choose brands with a complete after-sales service network and clear quality guarantee commitments.
- System Thinking: The air compressor is just the starting point. Post-treatment equipment (driers, filters), as well as pipeline layout, also affect the final airquality and energy consumption.
Deman Air Compressors: Offering Better Options for the Manufacturing Industry
As the leading brand of air compressors in China, Deman focuses on energy-saving solutions for compressed air systems, providing manufacturing enterprises with efficient, reliable and intelligent air compressor products:
- Permanent Magnet Variable Frequency Two-stage Compression Technology, with an overall energy-saving rate of 30% - 50%
- Ten-year whole machine warranty, an industry first, demonstrating quality through performance
- Smart Operation and Management Platform, enabling remote monitoring of equipment and fault prediction
- Seven-star Service, providing 24-hour rapid response
Whether you are building a new factory or upgrading equipment, Deman will provide you with a full lifecycle service covering selection, installation and operation and maintenance, helping you choose the right machines and make the best use of them.
Choosing the right air compressor is the first step towards reducing costs and increasing efficiency in manufacturing. If you need professional selection advice, please contact the Deman team. We will provide you with customized compressed air system solutions.
