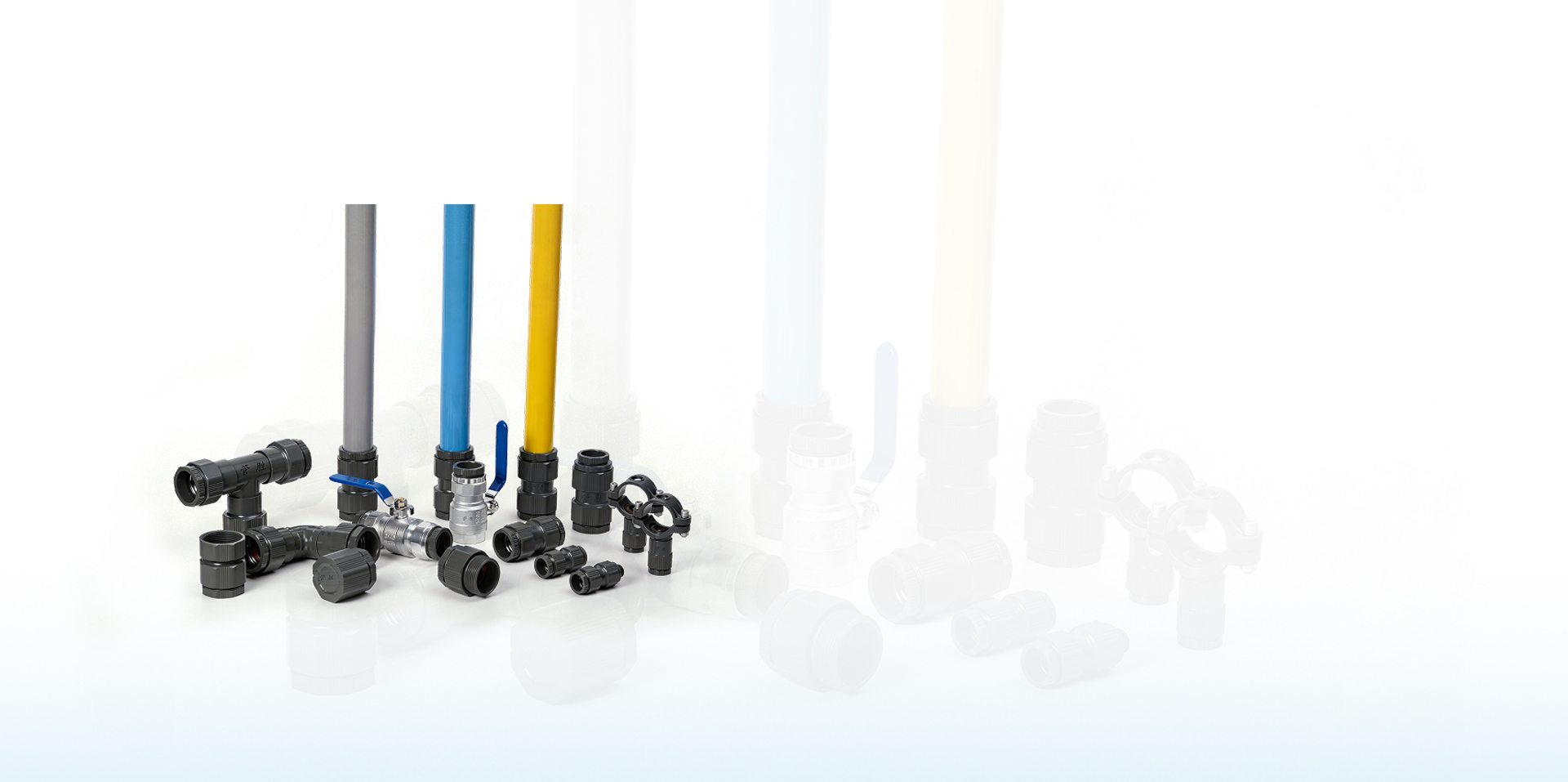

New Type of Quick-threaded Aluminum Alloy Fittings

Product Advantages

● Easy Installation

Extremely simple installation, significantly improving installation efficiency (a 22 kW compressor room can be installed in just 20 minutes). It can be installed by customers themselves without the need for professional tools.

● Stable and Corrosion-resistant

The internal structure of the fittings remains unchanged permanently and can be reused.

● High Cost Performance

Applicable to all air compressor pipeline systems with a power of 55kW and below.

● Good sealing performance

Dual-seal protection ensures zero leakage and excellent pressure retention performance.

Accessories

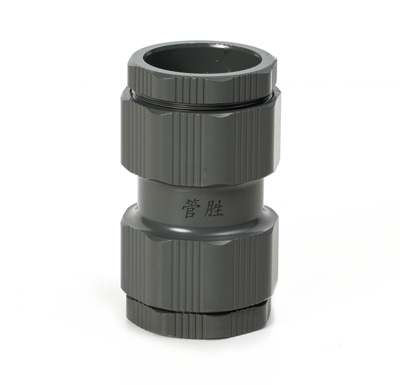

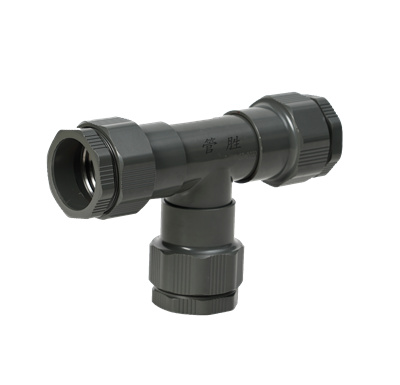

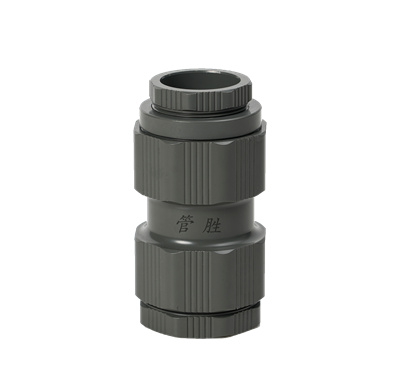

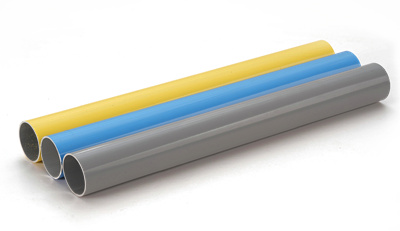

Aluminum Alloy Pipe		Straight Coupling	Reducing Coupling	Equal Tee
Specification	Size	Specification	Specification	Specification
DN20	6m	DN20	DN25-20	DN20
DN25		DN25	DN40-25	DN25
DN40		DN40	DN50-25	DN40
DN50		DN50	DN50-40	DN50

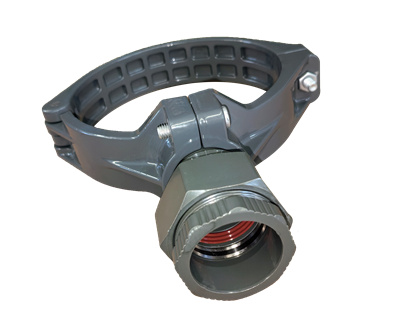

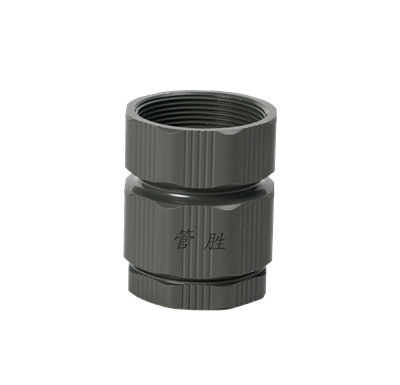

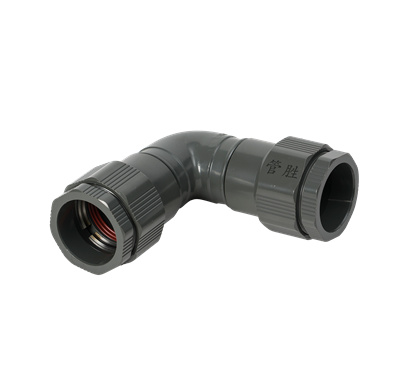

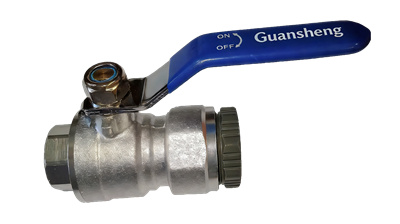

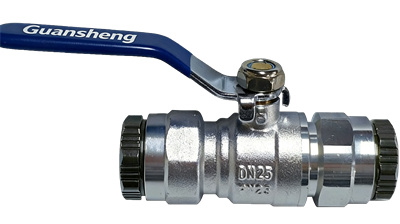

90° Elbow Connector	Integrated Quick-Connect Ball Valve	Female Threaded Coupling	Integrated Quick-Connect Ball Valve with Female Thread	Quick-Connect Tee
Specification	Specification	Specification	Specification	Specification
DN20	DN20	DN20-3/4”female thread	DN20-1/2”female thread	DN25-20
DN25	DN25	DN25-1”female thread	DN20-3/4”female thread	DN40-20
DN40	DN40	DN40-11/2”female thread	DN25-1/2”female thread	DN40-25
DN50	DN50	DN50-2”female thread	DN25-1”female thread	DN50-20
			DN40-11/2”female thread	DN50-25
			DN50-2”female thread	DN63-20
				DN63-25
				DN80-20
				DN80-25
				DN100-20

Pipe Clamp	U-Bolt Pipe Clamp	Bracket	Triangular Bracket	Threaded Rod	Tiger Tooth
Model	Model	Type	Type	Type	Type
DN20	DN20	15cm	50cm	M8	2.5
DN25	DN148	30cm	60cm	M10	3.5
DN40	DN200	50cm	70cm
DN50	DN273		80cm
DN63
DN80
