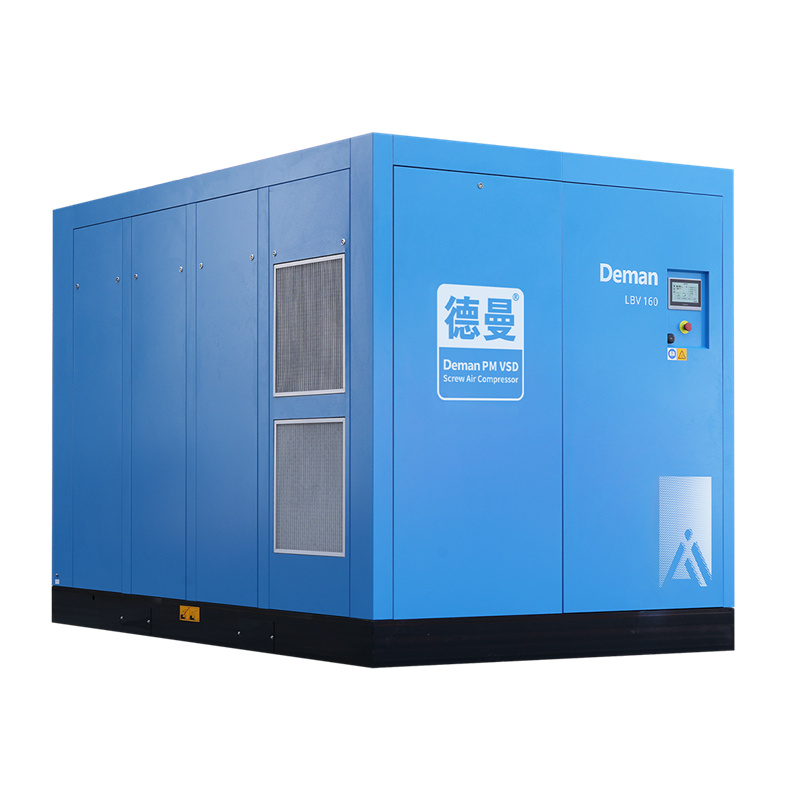

LBV Series PM VSD Screw Air Compressor

Product Highlight

Product Structure

•

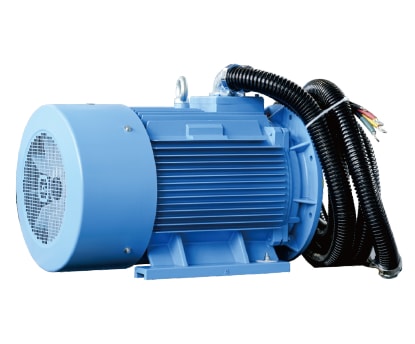

• PM VSD Motor

  · High power density, wide efficiency range, low vibration, smooth operation

  · Variable speed control and wide frequency  operation allow the air compressor to control exhaust pressure more accurately

  · The motor efficiency is IE 5 / GB 1 level

• Oil Separation System

  · Three-dimensional modeling: using CFD fluid software

  · Reasonable model selection: RNG k-εturbulence model is employed

  · Reliable verification: the simulated data is compared with the measured data

  · Consider physical properties: no oil leakage
•

•

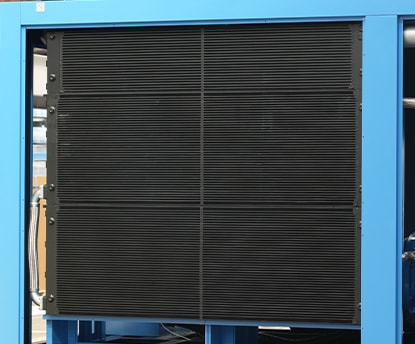

• Custom Large-scale Air Cooling System

  · Increased radiator area, exceeding design operating capacity by 25% under rated conditions

  · Variable frequency control and precise temperature control

  · Utilizing 3D modeling and CFD fluid software

  · The simulated data and the measured data are in good agreement

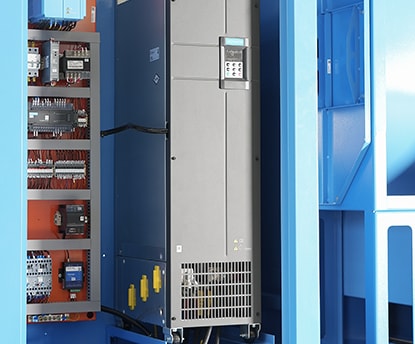

• Electrical Control System

  · Using Inovance heavy-duty vector inverter; wide speed regulation range and fast response speed

  · Constant pressure output: maintains a constant pressure with less than ±0.05 bar fluctuation
•

•

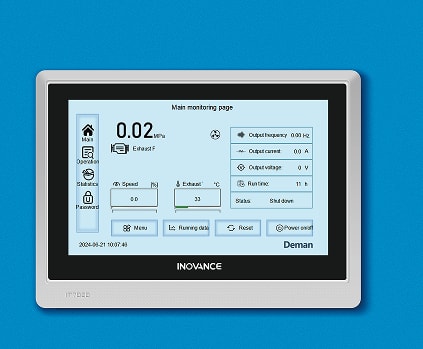

• Control System

  · Each LBV unit is equipped with the"Deman Cloud Control" system

  · By installing multiple sensors and implementing warning functions to address the different power configurations

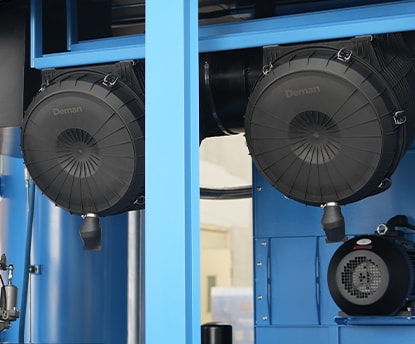

• Air Intake System

  · Adopts a built-in horizontal structure for intake, providing low resistance and low noise

  · Meets the EU standard F8 level
•

•

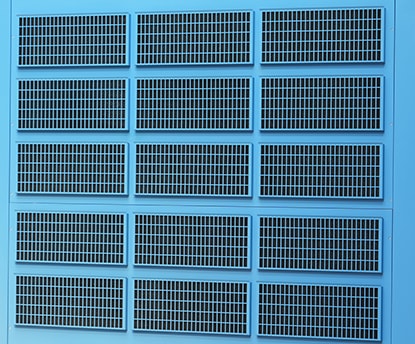

• External Air Intake Filter

  · Filters dust and fluff, washable

  · Prevents impurities from entering the machine

  · Replace every 3000 hours

  · Uniform size, easy to replace

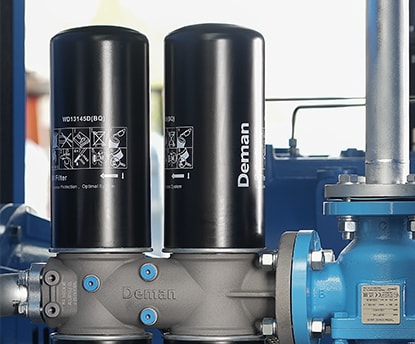

• Fiberglass Oil Filter

  · The High-precision oil filter is fiberglass oil filter and doesn’t dissolve in water or clog
•

•

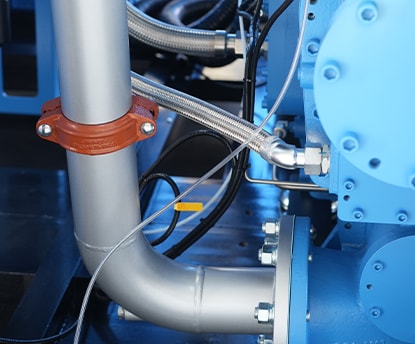

• Piping System

  · Designed for smooth flow, minimizing pressure loss

  · Pipes do not need to be replaced for ten years

  · Uses flexible clamps that never crack

  · Using fluororubber seals, temp. resistance up to 200℃

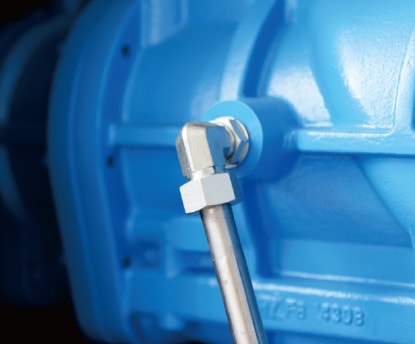

• Connection Joint

  · Made of carbon steel, surface plated with eco-friendly white zinc, pressure and corrosion resistant

  · Uses cone with O-ring dual sealing technology to ensure no leakage
•
