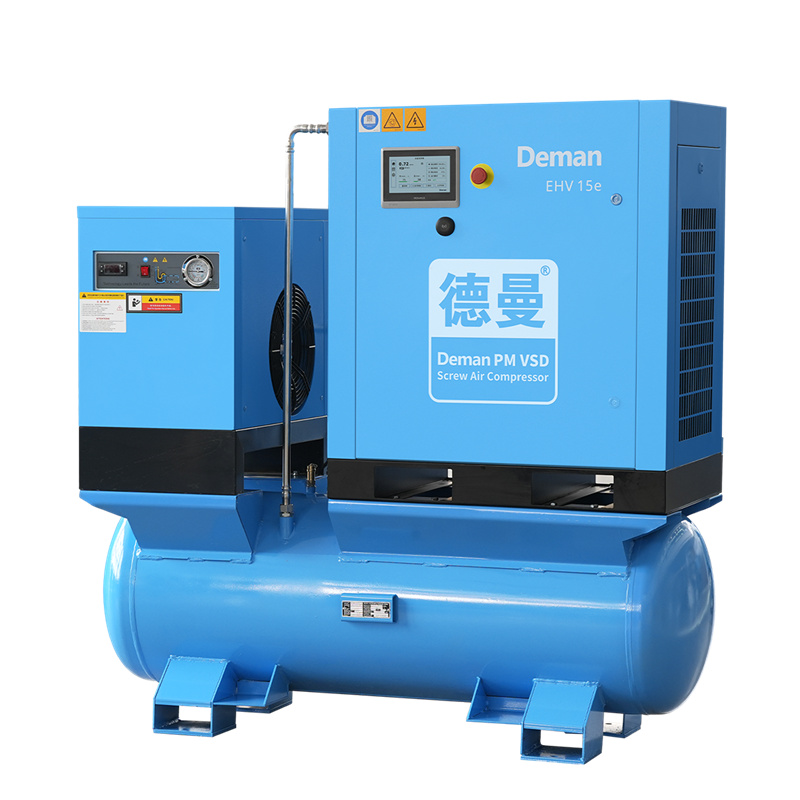

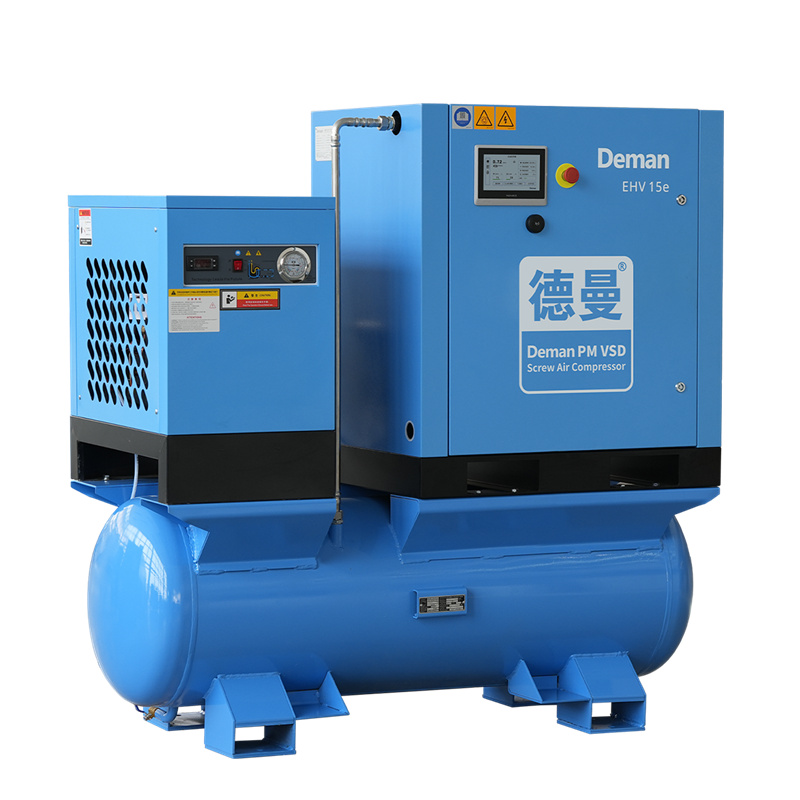

EHV Series- Air Compressor for Laser Cutting

Product Highlight

Product Structure

•

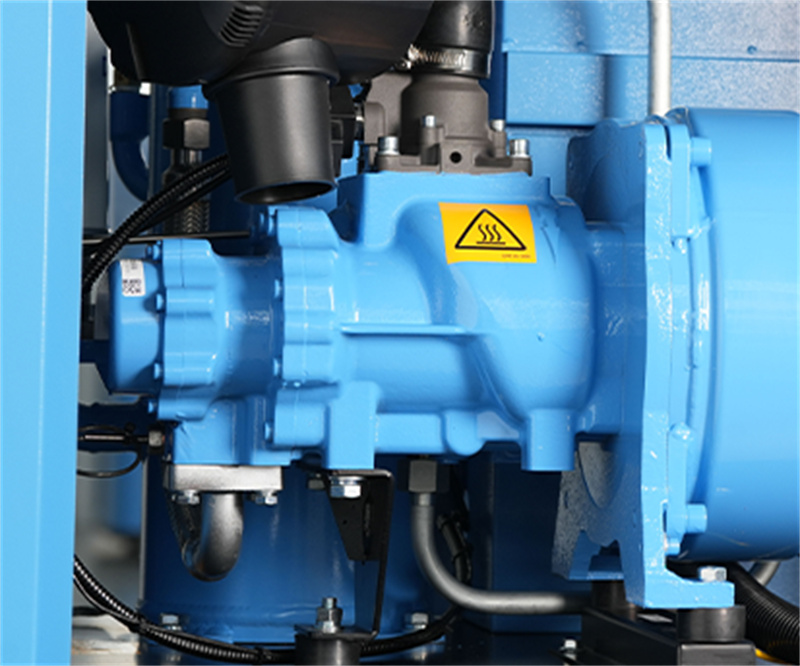

• High-pressure Dedicated Air-end：

  ·Designed specifically for high-pressure compression, with optimized profile to reduce internal leakage

  ·Using the world-class Hexagon coordinate measuring instruments, to ensure precision

  ·Features 8 bearings for stable operation and long service life

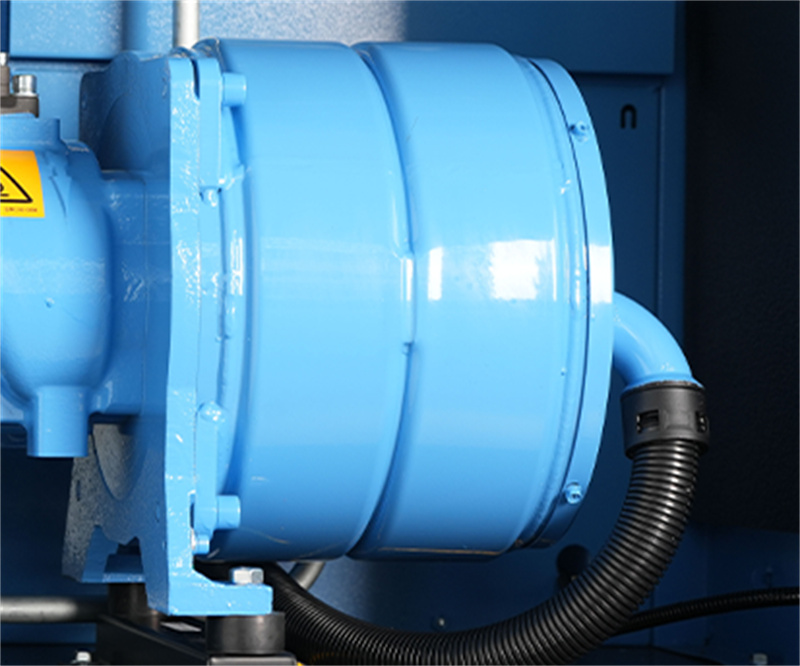

• High-efficiency Oil-cooled Motor：

  ·Equipped with an IE5 oil-cooled PM motor, IP65 protection rating, adaptable to harsh conditions

  ·Wide frequency range(20% -110%) with broad high efficiency spectrum and minimal fluctuation (＜4%), catering to various load requirements

  ·Integrated motor air-end structure to reduce transmission loss

  ·Variable-frequency starting to ensure that the starting current is lower than the rated current, with no power gird impact
•

•

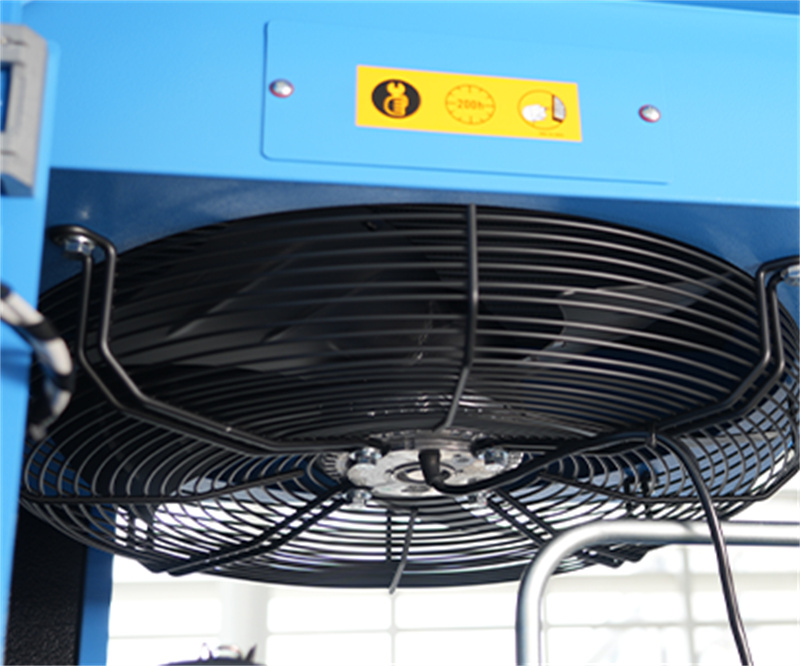

• Oversized Cooling System：

  ·Over 25% surplus cooling capacity, providing excellent high-temperature resistance

  ·Can operate reliably in environments with temperatures up to 46℃, ensuring stable and reliable performance

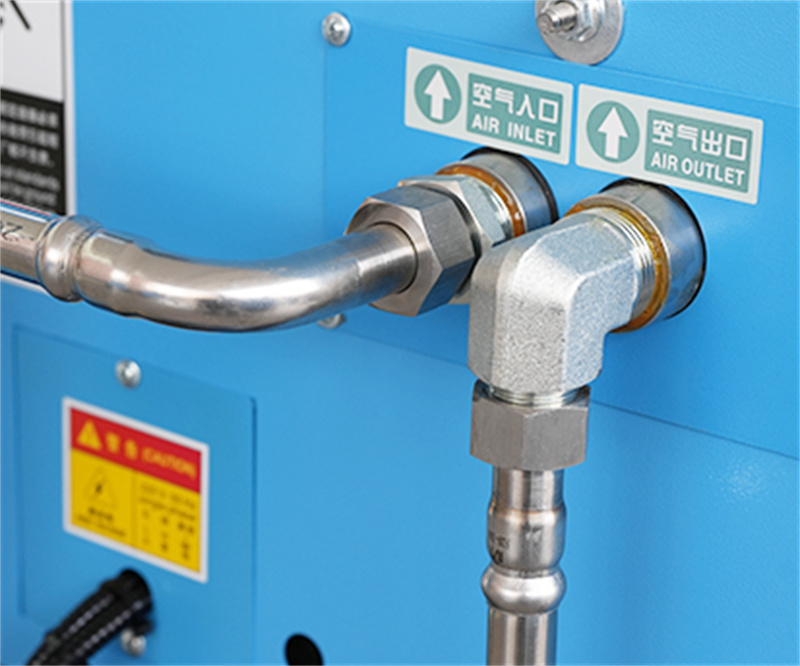

• Stainless Steel Piping：

  ·SUS304 material with smooth interior, minimizing pressure drop

  ·High corrosion resistance, rust-proof, ensuring premium air quality
•

•

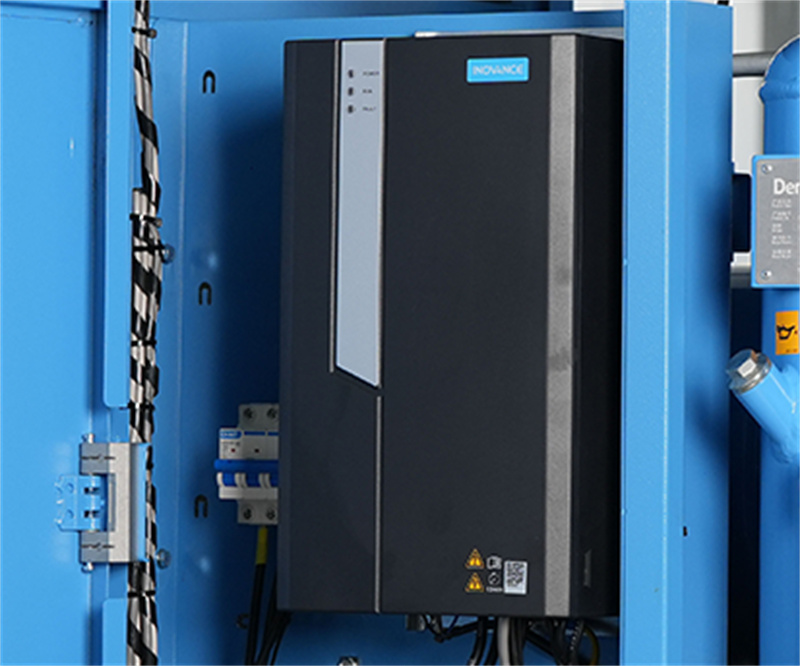

• Electric Control：

  ·Inovance Heavy-duty Inverter: high starting torque, low current, and precise speed control for reliable operation

  ·Deman Intelligent Control System: advanced algorithms for high-pressure control, precise pressure regulation, and lower power consumption

  ·High-performance PLC: fast, stable and compatible with mainstream communication protocols for seamless inverter integration

  ·7-inch Color Touchscreen: intuitive interface for efficient data visualization and operation

  ·User-friendly Interface: designed for easy human-machine interaction and equipment monitoring

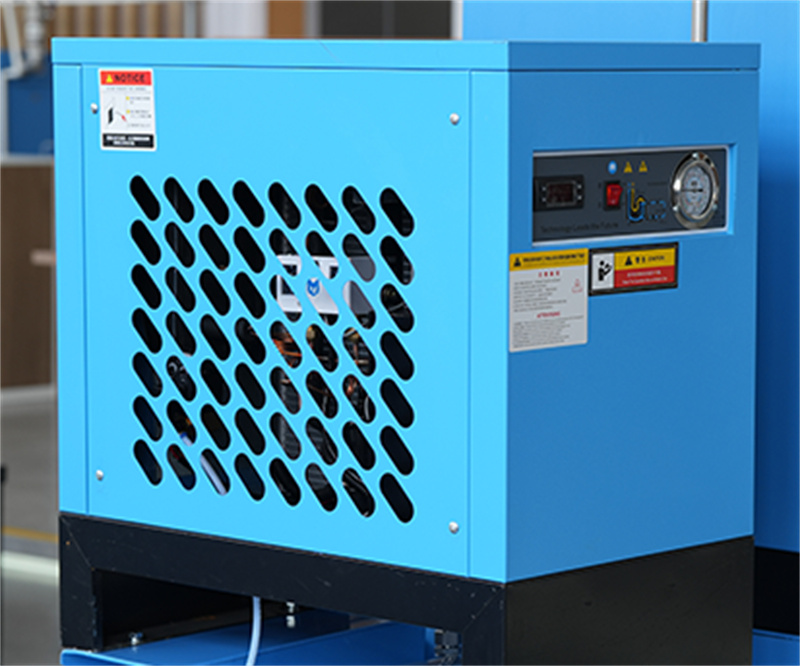

• High-efficiency Aluminum-plate Air Dryer：

  ·5℃ inlet-outlet temperature difference for pre-cooling, reducing power consumption and preventing secondary condensation.

  ·Designed for hot and humid conditions with R410a refrigerant. Features a quiet, reliable compressor for long-lasting performance.

  Consistent Dew Point: high-efficiency heat exchange design with processing surplus for a stable 2-10℃ dew point at the outlet.
•
